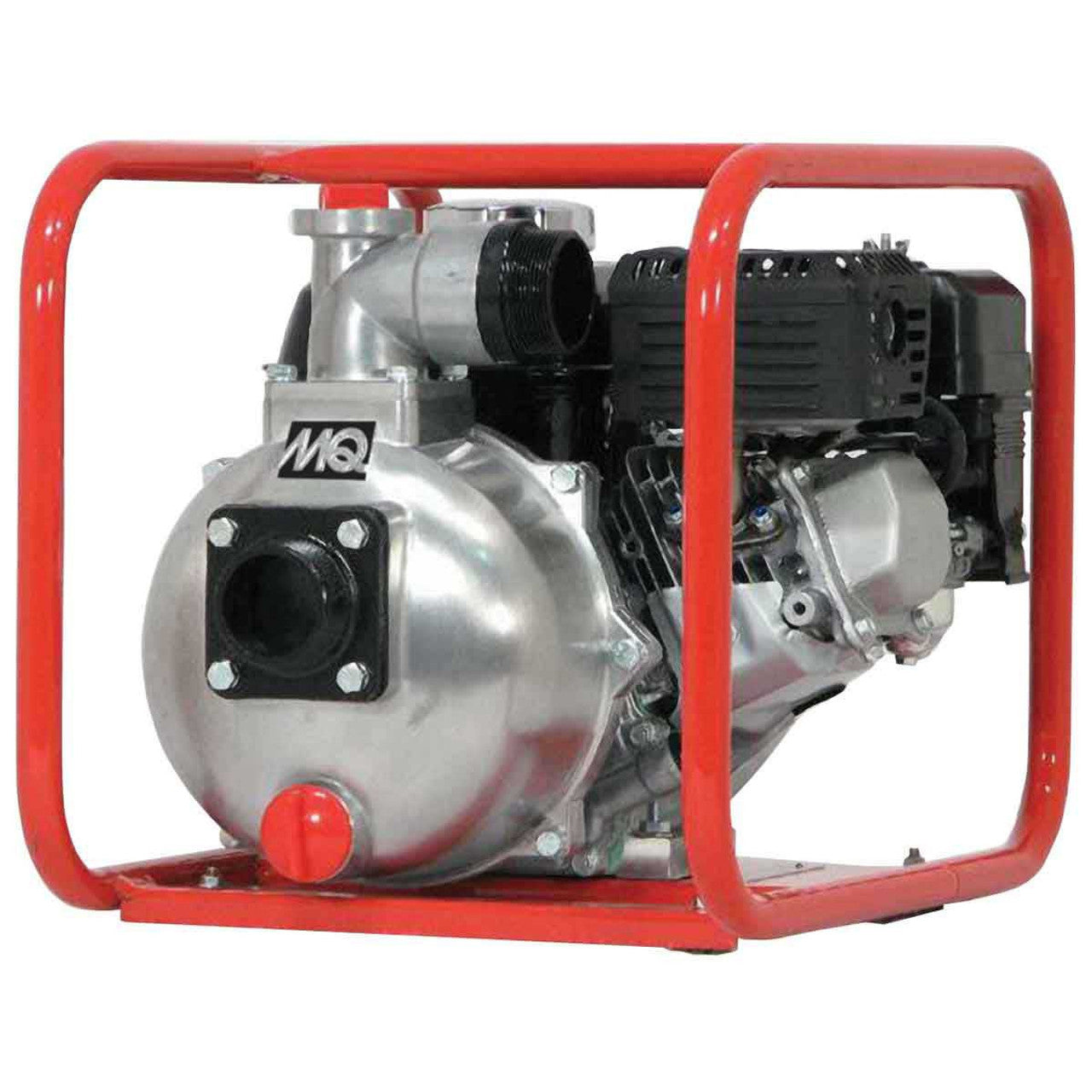

Description:

This versatile centrifugal pump makes fast work of moving all types of clear water applications where there are limited solids (up to 10% of solids with a maximum solid size of 1/4 of the diameter of the pump ports.

Features:

• Perfect for construction, municipal and agricultural jobs.
• Maximum pumping capacity of 158 gallons (598 liters) per minute.
• Maximum lift of 25 feet (7.6 meters).
• Powerful 3.5HP GX120 Honda gasoline engine.
• Discharge port easily rotates 180º for hose orientation.
• Engine oil-alert to protect the engine in the case of low engine oil.
• Aluminum body with cast-iron fittings.
• Tubular Steel frame for transportation and pump protection.
• Cast Iron impeller and volute for abrasion resistance/long life.

Specifications:

• Suction x Discharge: 2 x 2 in (51 x 51 mm)
• Max. Water Capacity: 142 gpm (537 lpm)
• Max. Lift: 25 ft (7.6 m)
• Max. Head: 115 ft (35 m)
• Max. Pressure: 49.8 psi (343 kPa)
• Fuel Tank Capacity: 2.6 qt (2.5 L)
• Optional Wheel Kit: UWKA

Dimensions & Weights:

• Overall Length: 18.9 in (480 mm)
• Overall Width: 14.3 in (363 mm)
• Overall Height: 14.9 in (378 mm)
• Operating Weight: 57 lb (26 kg)
