Description:

Honda GX100 Engine, 3,350 lb impact force, 11.2 in shoe

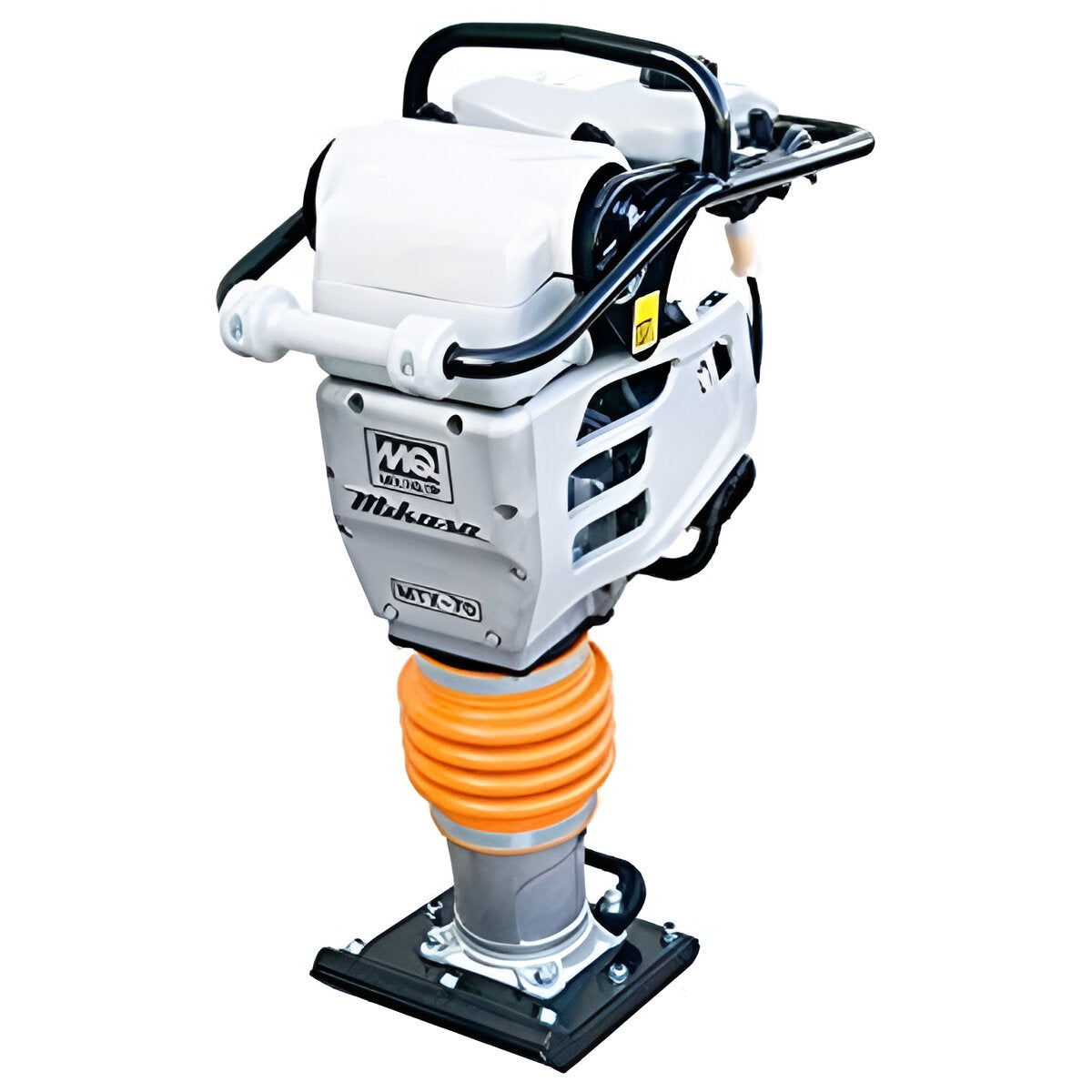

Multiquip’s Mikasa MTX70HD is our most popular selling rammer – new and improved! This middle-weight compactor is ideal for confined area compaction and is exceptionally well balanced. Now with a redesigned fuel-tank that meets new EPA standards and features an integrated tachometer/hour meter.

MTX-Series rammers are renowned for performance and ease of operation.

The MTX-Series includes the features most preferred by contractors such as:

Features:

• Cyclonic air cleaners that capture 98% of airborne dust particles
• Long-lasting laminated wood and steel shoe
• Low vibration handles for operator comfort
• Combination hour meter/tachometer
• Durable guards to protect the engine from damage
• Redesigned fuel tank to meet EPA standards for evaporative emissions

Specifications:

Performance

• Blows Per Minute: Up to 690*
• Impact Force: 3,350 lbf (1,520 kgf)
• Shoe Jump Height: 3.1 in (79 mm)
• Shoe Dimensions (L x W): 13.4 x 11.2 in (340 x 285 mm)
• Travel Speed Per Minute: 55.8 ft (17 m)
• Fuel Tank Capacity: 2.7 qt (2.5 L)

Dimensions & Weight

• Overall Length: 31.0 in (788 mm)
• Overall Width: 13.8 in (350 mm)
• Overall Height: 40.4 in (1,027 mm)
• Operating Weight: 165 lb (75 kg)

Engine Specifications

• Engine Make/Model: Honda GX100
• Start Method: Recoil
• Engine Power: 2.8 HP (2.1 kW)
• Engine RPM: 4,100
• Fuel Type: Gasoline
