Description

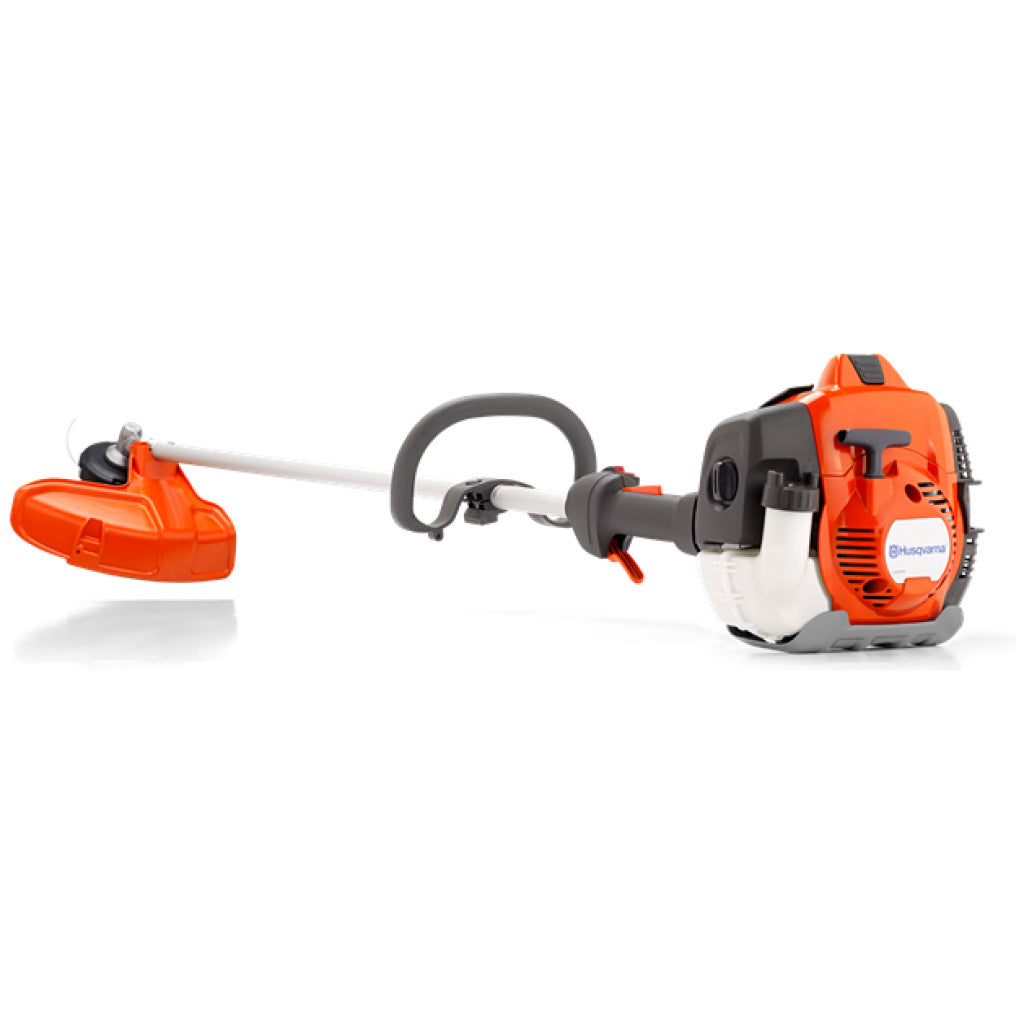

525L

Stay on the cutting edge of your professional maintenance work. The Husqvarna 525L is a robust, durable trimmer that’s intended for daily use by hardworking landscapers. Easy to maintain and service, this straight shaft trimmer features pro-grade components and intuitive controls. Plus, our patented X-Torq® engine means more power and less fuel consumption and emissions compared to conventional engines.

Specification:

• Model: US50/Can/AU/NZ, T35
• SKU: 966 78 17-01
• Cutting width: 18.1 in
• Dimensions:
• Weight (excluding cutting equipment): 9.7 lbs
• Product size length: 70.43 in
• Tube diameter: 0.94 in
• Product size height: 8.74 in
• Product size width: 9.53 in
• Tube length: 58.386 in
• Engine:
• Output shaft power: 1.21 hp
• Cylinder displacement: 25.4 cm³
• Maximum rpm output shaft: 6,500 rpm
• Fuel tank volume: 17.25 fl oz / 0.51 l
• Clutch engagement speed (±120): 4,000 rpm
• Electrode gap: 0.03 in
• Fuel consumption: 600 g/kWh
• Idling speed: 3,000 rpm
• Maximum power speed: 8,500 rpm
• Spark Plug: NGK BPMR8Y
• Torque, max.: 1.2 Nm at 6,000 rpm
• Equipment:
• Gear ratio: 19
• Drive gear angle: 30 °
• Harness: Not included
• Saw blade: Not included
• Trimmer head: T35 M10
• Grass blade: Not included
• Sound and Noise:
• Sound power level, guaranteed (LWA): 107 dB(A)
• Sound pressure level at operator's ear: 98 dB(A)
• Vibration:
• Equivalent vibration level (ahv, eq) left handle: 3 m/s²
• Equivalent vibration level (ahv, eq) right handle: 2.8 m/s²
• Lubricant:
• Lubricant type (Engine): Husqvarna 2 stroke or equivalent at 50:1
• Emission:
• Exhaust emissions (CO average) CARB: 254.3 g/kWh
• Exhaust emissions (CO average) EPA: 254.3 g/kWh
