Description:

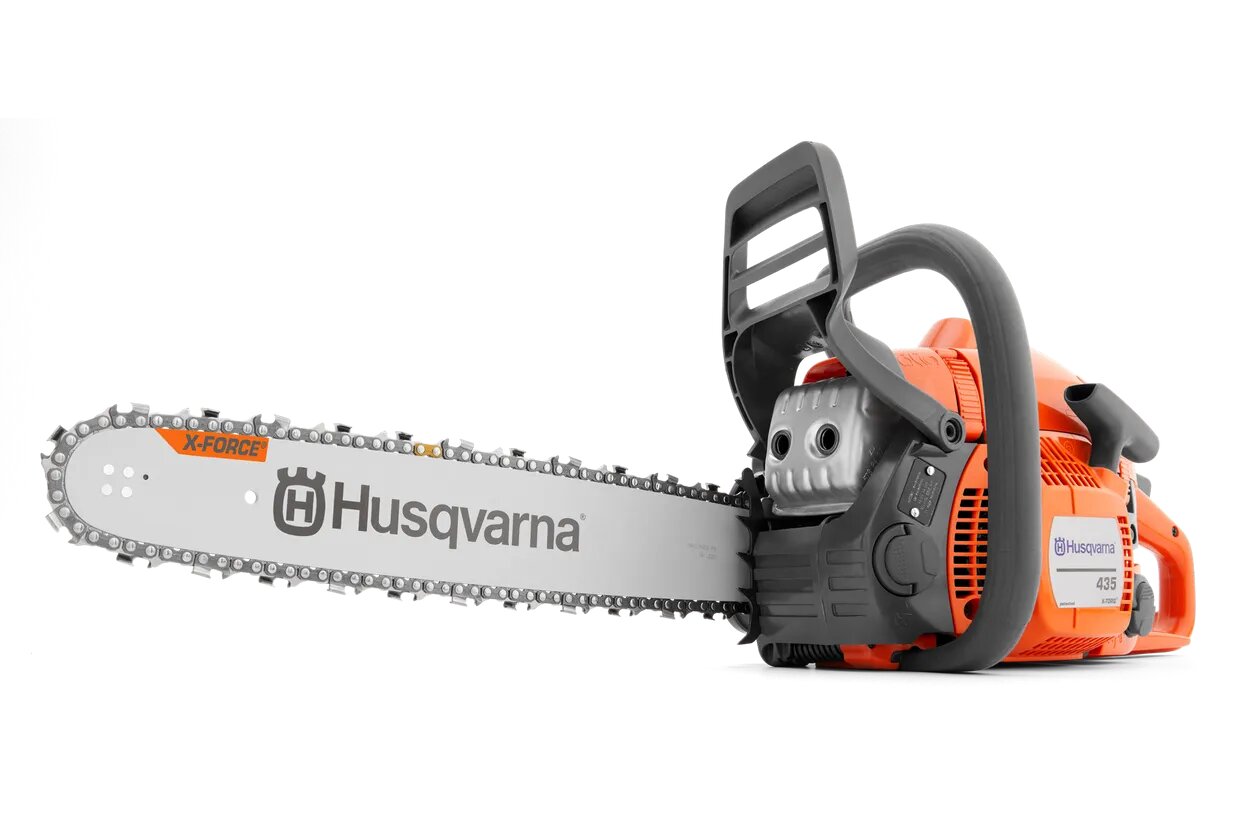

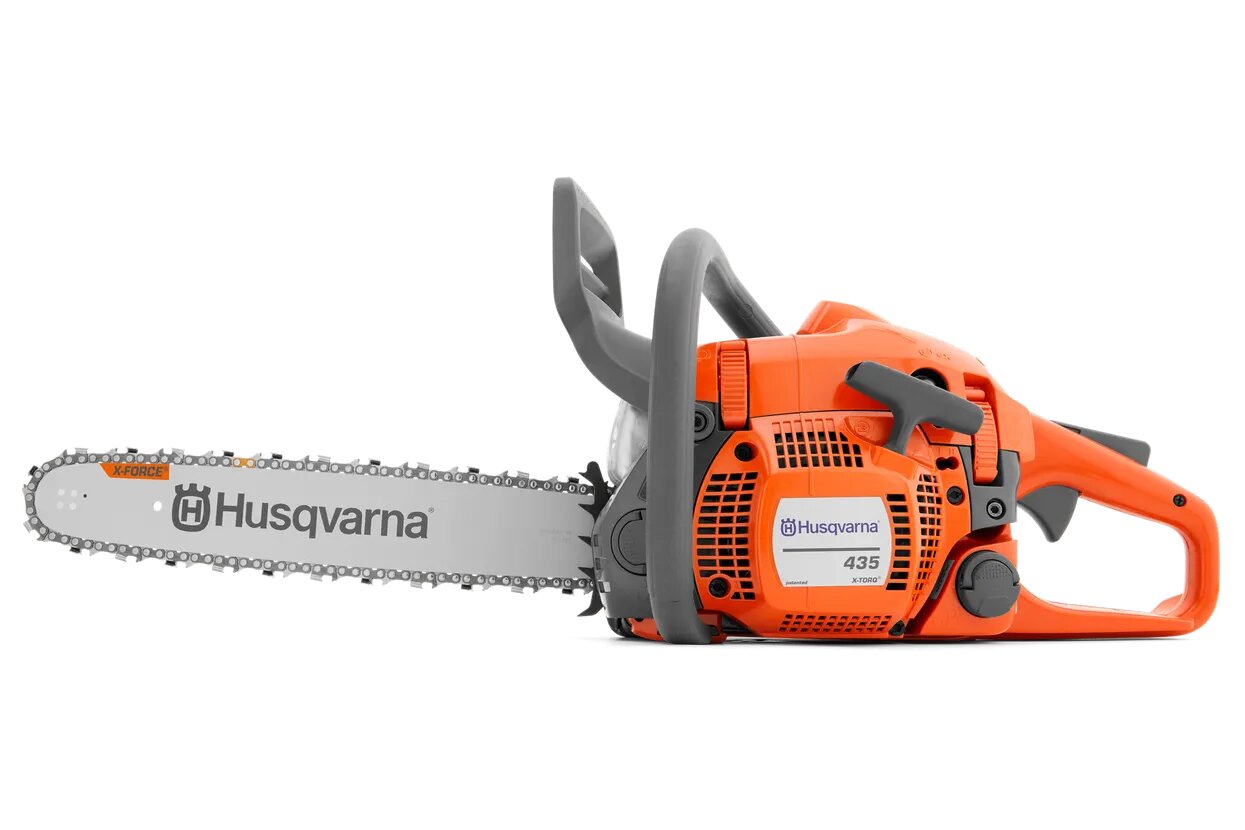

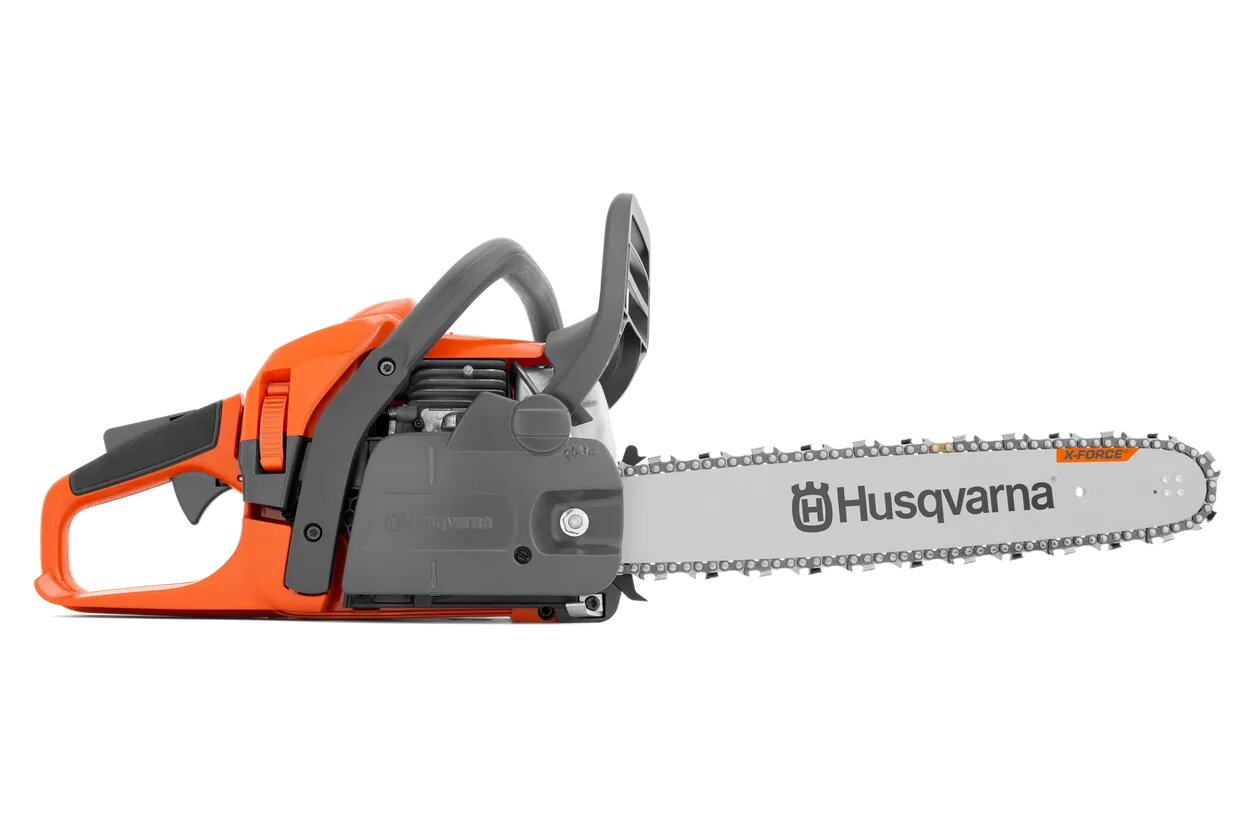

For quick and easy home maintenance, trust the Husqvarna 435. This robust gas saw features Smart Start® technology and air purge to deliver best-in-class starting performance.* Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And LowVib® technology makes this saw comfortable to use, even in demanding conditions.

Specifications:

Engine:

• Chain Speed at Max Power: 56.76 feet per second
• Cylinder Displacement: 40.9 cm³
• Output Shaft Power: 2.2 hp
• Clutch Engagement Speed: 4,300 rpm (±120)
• Electrode Gap: 0.02 inches
• Idling Speed: 2,900 rpm
• Ignition Module Air Gap: 0.01 inches
• Maximum Power Speed: 9,000 rpm
• Oil Pump Type: Fixed flow

Equipment:

• Recommended Bar Length:
• Minimum: 13 inches
• Maximum: 18 inches
• Chain Type: H30
• Bar Length: 16 inches (40 cm)
• Sprocket Type: Spur 7
• Pitch: .325"
• Gauge: .050"

Dimensions:

• Weight (Excluding Cutting Equipment): 9.78 lbs

Sound and Noise:

• Sound Pressure Level at Operator's Ear: 102 dB(A)
• Sound Power Level, Guaranteed (LWA): 114 dB(A)
• Sound Power Level, Measured: 113 dB(A)

Vibration:

• Equivalent Vibration Level (ahv, eq) Rear Handle: 3.8 m/s²
• Equivalent Vibration Level (ahv, eq) Front Handle: 3.1 m/s²

Lubricant:

• Oil Tank Volume: 0.53 US pint

Emission:

• Exhaust Emissions (CO₂ EU V): 813 g/kWh
